Stack Mold or T Molds Injection Machines

1.What is laminated mold?

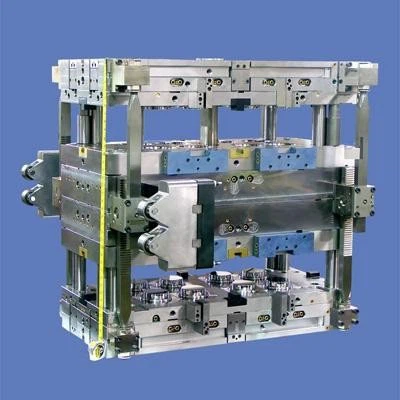

Laminated mold is a cutting-edge technology in the development of plastic mold today. The cavity is distributed on two or more levels and is arranged in a superimposed arrangement, which is equivalent to putting multiple pairs of molds together

2.The background of the demand generated by the lamination mold Usually when the injection machine uses the single-layer plastic injection mold, the injection volume and the mold opening process of the injection machine is only 20% to 40% of the specified amount, which does not give full play to the performance of the injection machine, and the lamination injection mold can not increase the clamping force, Under the condition of one injection machine and one operator, the output can be doubled according to the number of layers, which can greatly improve the production efficiency and equipment utilization rate, and can save the production cost and human resources. Laminated injection mold is most suitable for forming large flat parts, shallow cavity shell parts, small multi-cavity thin-wall parts and mass production parts.

3. What are the advantages of laminated molds?

(1) Compared with the conventional mold, the laminated mold locking force is only increased by 10% ~ 15%, but the output can be increased by 90% ~ 95%;

(2) the mold manufacturing requirements are basically the same as the conventional mold, and the combination of multiple cavities in a mold, so the mold manufacturing cycle is greatly shortened;

(3) High efficiency laminated injection mold can double or quadruple the output of ordinary single-layer mold without investing in additional machinery and equipment. This saves the cost of installing machinery and equipment, expanding the plant and adding labor;

(4) The laminated mold can be installed on the injection molding machine with similar requirements of the single-layer mold, but the output efficiency per unit time is doubled

(5) Save raw materials, easy automation, improve product performance, shorten the production cycle
